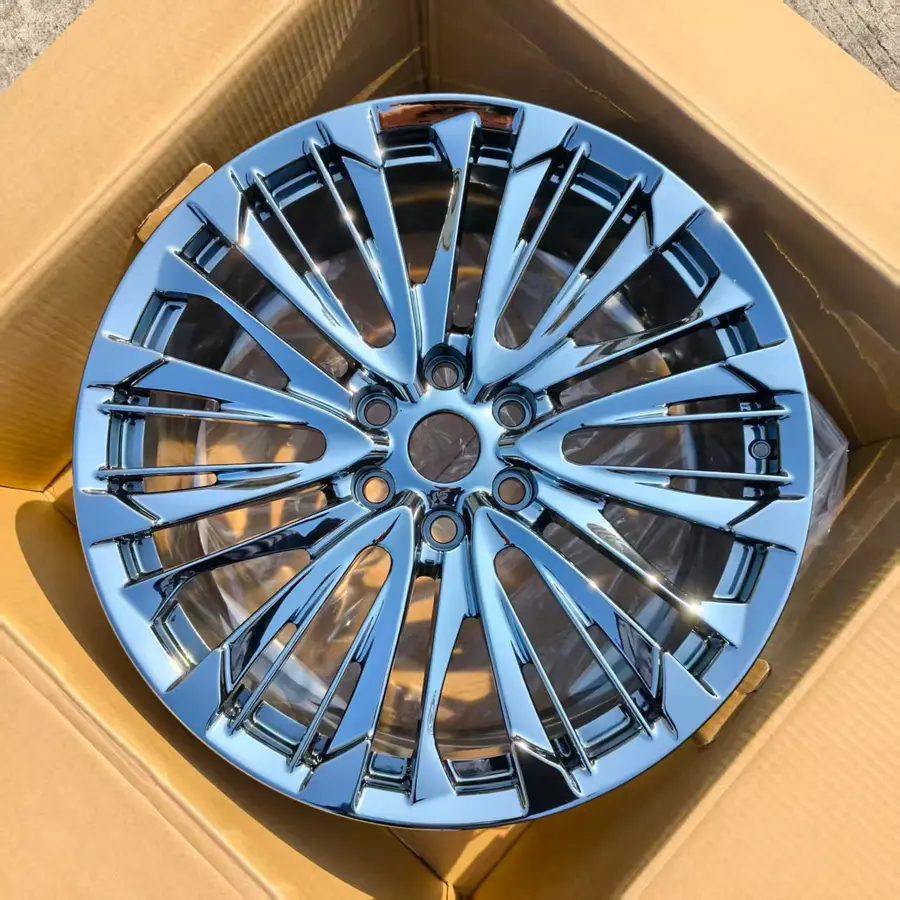

WD0582 Forged Alloy Wheel in Plating
WD0582 is a forged alloy wheel (rim) in Plating, one of 2 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 22 inch: 1 size (22x9), 1 bolt pattern (6x139.7), offset ET 40 mm and center bore 95.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 22x9
Bolt patterns (PCD): 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 22x9 | 40 | 6x139.7 | 95.1 | 12 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 22x9 is a 22 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0582 comes in ET 40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 95.1 mm for WD0582. A bore larger than the hub needs centering rings.
