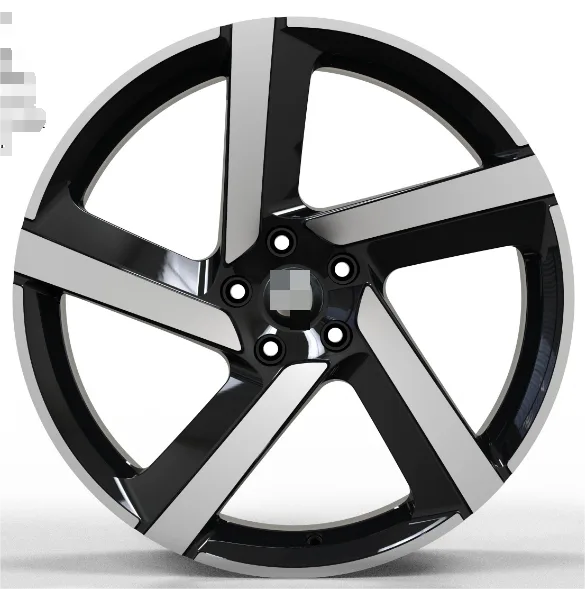

WD0555 Forged Alloy Wheel
WD0555 is a forged alloy wheel (rim) in 1 finish: Gloss Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 19–21 inch: 5 sizes (19x8.5, 20x8.5, 20x9, 21x8.5, 21x9.5), 1 bolt pattern (5x114.3), offset ET 32–38 mm and center bore 64.5 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 19x8.5, 20x8.5, 20x9, 21x8.5, 21x9.5
Bolt patterns (PCD): 5x114.3
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Load (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 19x8.5 | 32 | 5x114.3 | 64.5 | 900 | 8 | |
| 20x8.5 | 32 | 5x114.3 | 64.5 | 7 | ||
| 20x9 | 35 | 5x114.3 | 64.5 | 3 | ||
| 21x8.5 | 32 | 5x114.3 | 64.5 | 14 | ||
| 21x9.5 | 38 | 5x114.3 | 64.5 | 16 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0555 comes in ET 32–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.5 mm for WD0555. A bore larger than the hub needs centering rings.
