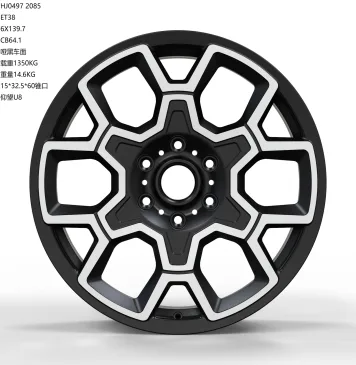

WD0497 Forged Alloy Wheel
WD0497 is a forged alloy wheel (rim) in 1 finish: Matte Black Machined Face. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 20–22 inch: 2 sizes (20x8.5, 22x9), 1 bolt pattern (6x139.7), offset ET 35–38 mm and center bore 64.1 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 20x8.5, 22x9
Bolt patterns (PCD): 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Lug hole (mm) | Load (kg) | Weight (kg) | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|
| 20x8.5 | 38 | 6x139.7 | 64.1 | 15*32.5*60 | 1350 | 16.6 | 12 | |
| 22x9 | 35 | 6x139.7 | 64.1 | 3 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0497 comes in ET 35–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 64.1 mm for WD0497. A bore larger than the hub needs centering rings.
