WD0337 Forged Alloy Wheel
WD0337 is a forged alloy wheel (rim) in 2 finishes: Gloss Black (Full Paint) and Silver (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 22–23 inch: 2 sizes (22x9.5, 23x9.5), 1 bolt pattern (5x120), offset ET 42.5 mm and center bore 72.56 mm. Listed for Land Rover (Range Rover). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.

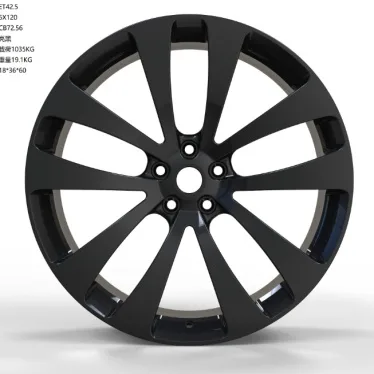

No photo for this finish yet; showing another finish of WD0337.
Finish
Wheel sizes: 22x9.5, 23x9.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 22x9.5 | 42.5 | 5x120 | 72.56 | Cone seat | 18*36*60 thickness 19 | 1035 | 17.4 | Land Rover Range Rover | 4 | |
| 23x9.5 | 42.5 | 5x120 | 72.56 | Cone seat | 18*36*60 thickness 19 | 1035 | 19.1 | Land Rover | 3 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 22x9.5 is a 22 inch wheel with a 9.5 inch wide rim. The J after a width, as in 9.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0337 comes in ET 42.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 72.56 mm for WD0337. A bore larger than the hub needs centering rings.
