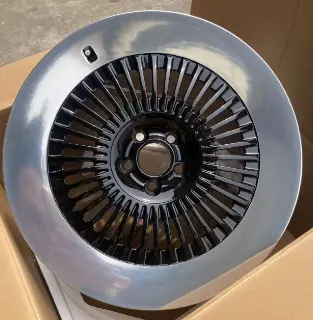

WD0331 Forged Alloy Wheel
WD0331 is a forged alloy wheel (rim) in 1 finish: Gloss Black + Polished. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 21–23 inch: 5 sizes (21x9, 21x9.5, 22x9, 22x9.5, 23x9.5), 1 bolt pattern (5x120), offset ET 35–42.5 mm and center bore 66.1–72.56 mm. Listed for Land Rover (Range Rover). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Land Rover.
Finish
Wheel sizes: 21x9, 21x9.5, 22x9, 22x9.5, 23x9.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 21x9 | 35 | 5x120 | 66.1 | 15*32.5*60 | 1100 | 17.5 | 5 | |||
| 21x9.5 | 35 | 5x120 | 66.1 | 15*32.5*60 | 1100 | 17.8 | 2 | |||
| 21x9.5 | 38 | 5x120 | 66.1 | 4 | ||||||
| 21x9.5 | 40 | 5x120 | 72.56 | Cone seat | 18*36*60 thickness 19 | 1035 | 17.8 | Land Rover Range Rover | ||
| 21x9.5 | 42.5 | 5x120 | 72.56 | Cone seat | Land Rover | 8 | ||||
| 22x9 | 35 | 5x120 | 66.1 | 15*32.5*60 | 1100 | 15.5 | 1 | |||
| 22x9.5 | 35 | 5x120 | 66.1 | 15*32.5*60 | 1100 | 18.8 | 2 | |||
| 22x9.5 | 40 | 5x120 | 72.56 | 18*36*60 thickness 19 | 1035 | 18.8 | Land Rover | 5 | ||
| 22x9.5 | 42.5 | 5x120 | 72.56 | Cone seat | Land Rover | 14 | ||||
| 23x9.5 | 40 | 5x120 | 72.56 | 18*36*60 thickness 19 | 1035 | 20.2 | Land Rover | |||
| 23x9.5 | 42.5 | 5x120 | 72.56 | Cone seat | Land Rover | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 21x9 is a 21 inch wheel with a 9 inch wide rim. The J after a width, as in 9J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0331 comes in ET 35–42.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.1–72.56 mm for WD0331. A bore larger than the hub needs centering rings.
