WD0330 Forged Alloy Wheel in White (Full Paint)
WD0330 is a forged alloy wheel (rim) in White (Full Paint), one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 17 inch: 1 size (17x8.5), 1 bolt pattern (6x139.7), offset ET 0 mm and center bore 100 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.

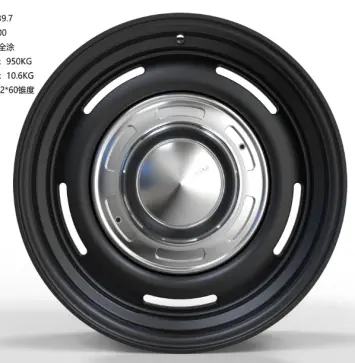

No photo for this finish yet; showing another finish of WD0330.
Finish
Wheel sizes: 17x8.5
Bolt patterns (PCD): 6x139.7
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|
| 17x8.5 | 0 | 6x139.7 | 100 | Cone seat | 950 | 10.6 | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 17x8.5 is a 17 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0330 comes in ET 0; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 6x139.7 is 6 bolts on a 139.7 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 100 mm for WD0330. A bore larger than the hub needs centering rings.
