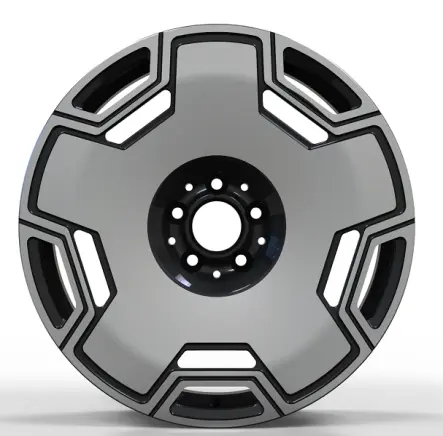

WD0193 Forged Alloy Wheel in Gloss Black Polished Face
WD0193 is a forged alloy wheel (rim) in Gloss Black Polished Face, one of 3 finishes. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 18–22 inch: 6 sizes (18x8, 19x8.5, 19x9.5, 20x8.5, 20x9.5, 22x10), 2 bolt patterns (5x112 and 5x130), offset ET 36–43.5 mm and center bore 66.56–84.1 mm. Listed for Mercedes-Benz. Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Mercedes-Benz.
No photo for this finish yet; showing another finish of WD0193.
Finish
Wheel sizes: 18x8, 19x8.5, 19x9.5, 20x8.5, 20x9.5, 22x10
Bolt patterns (PCD): 5x112, 5x130
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 18x8 | 38 | 5x112 | 66.56 | Mercedes-Benz | 8 | |||||
| 19x8.5 | 36 | 5x112 | 66.6 | Mercedes-Benz | 3 | |||||
| 19x9.5 | 43.5 | 5x112 | 66.6 | Mercedes-Benz | 4 | |||||
| 20x8.5 | 36 | 5x112 | 66.6 | Mercedes-Benz | 0 | |||||
| 20x9.5 | 43.5 | 5x112 | 66.6 | Mercedes-Benz | 0 | |||||
| 22x10 | 36 | 5x130 | 84.1 | Mercedes-Benz | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 18x8 is a 18 inch wheel with a 8 inch wide rim. The J after a width, as in 8J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0193 comes in ET 36–43.5; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.56–84.1 mm for WD0193. A bore larger than the hub needs centering rings.
