WD0147 Forged Alloy Wheel

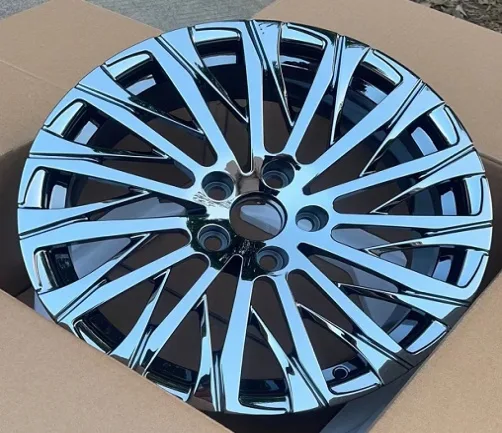

WD0147 is a forged alloy wheel (rim) in 1 finish: Black Chrome Plating. It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16–20 inch: 5 sizes (16x7, 17x7.5, 18x8, 19x8.5, 20x8.5), 3 bolt patterns (5x114.3, 5x120 and 6x130), offset ET 35–38 mm and center bore 60.1–75 mm. Listed for Toyota (Alphard, HiAce). Not sure what PCD, ET and CB mean? Read how to choose wheels.
More wheels for Toyota.
Finish
Wheel sizes: 16x7, 17x7.5, 18x8, 19x8.5, 20x8.5
Bolt patterns (PCD): 6x130, 5x114.3, 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Lug hole (mm) | Load (kg) | Weight (kg) | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|---|---|---|
| 16x7 | 35 | 6x130 | 75 | 20*35 depth 18 | 1200 | 12.2 | Toyota HiAce | 1 | ||
| 17x7.5 | 35 | 5x114.3 | 60.1 | Flat seat | 19*34 depth 15 | 850 | 10.2 | 0 | ||
| 18x8 | 35 | 5x114.3 | 60.1 | 19*34 depth 15 | 850 | 11 | 3 | |||
| 18x8 | 35 | 6x130 | 75 | 0 | ||||||
| 19x8.5 | 35 | 5x120 | 60.1 | 37.5*22.5*15 thickness | 850 | 12.7 | Toyota Alphard | 20 | ||
| 19x8.5 | 38 | 5x114.3 | 60.1 | 19*34 depth 15 | 850 | 12.7 | 18 | |||
| 20x8.5 | 35 | 5x114.3 | 60.1 | 19*34 depth 15 | 850 | 13.7 | 2 | |||
| 20x8.5 | 35 | 5x120 | 60.1 | Flat seat | 37.5*22.5*15 thickness | 850 | 13.7 | 2 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x7 is a 16 inch wheel with a 7 inch wide rim. The J after a width, as in 7J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. WD0147 comes in ET 35–38; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x114.3 is 5 bolts on a 114.3 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 60.1–75 mm for WD0147. A bore larger than the hub needs centering rings.
