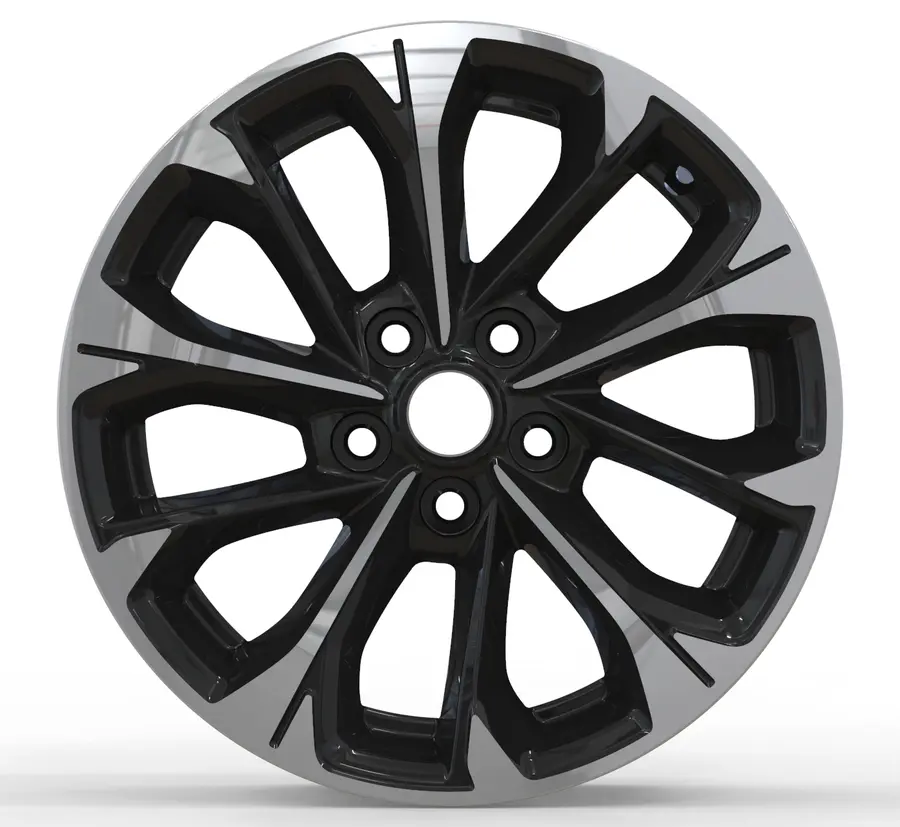

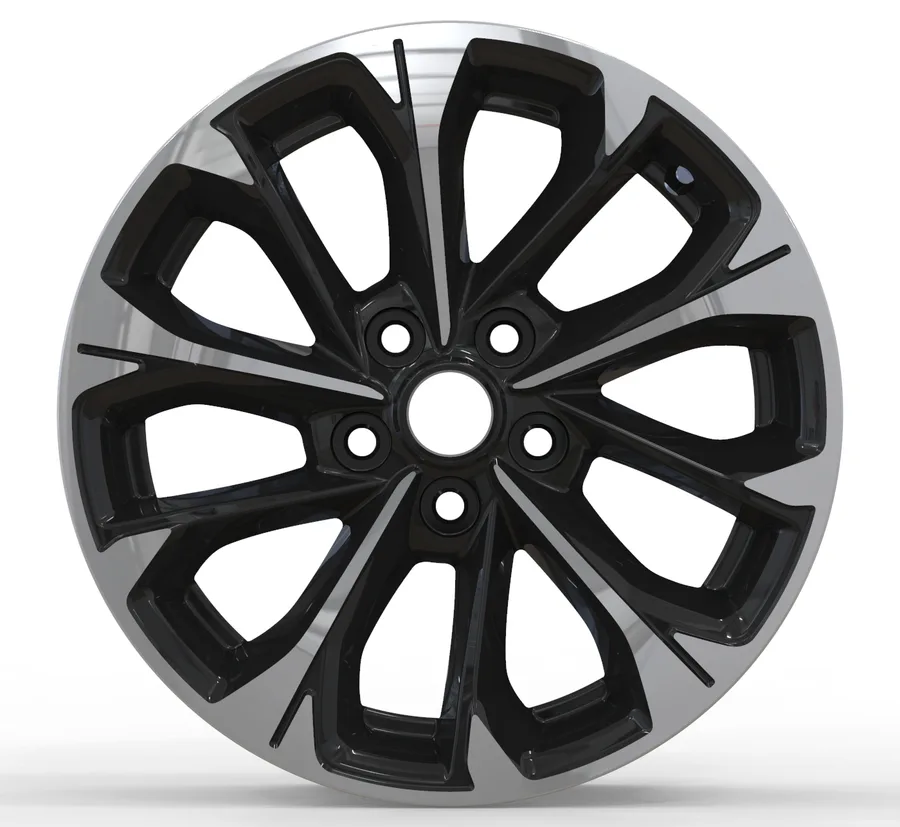

RHX1041 Cast Alloy Wheel
RHX1041 is a cast alloy wheel (rim) in 1 finish: Silver (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16 inch: 1 size (16x6.5), 1 bolt pattern (5x105), offset ET 43.7 mm and center bore 56.6 mm. Listed for Chevrolet. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 16x6.5
Bolt patterns (PCD): 5x105
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x6.5 | 43.7 | 5x105 | 56.6 | Cone seat | Chevrolet | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x6.5 is a 16 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. RHX1041 comes in ET 43.7; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x105 is 5 bolts on a 105 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 56.6 mm for RHX1041. A bore larger than the hub needs centering rings.
