CP6209 Forged Alloy Wheel

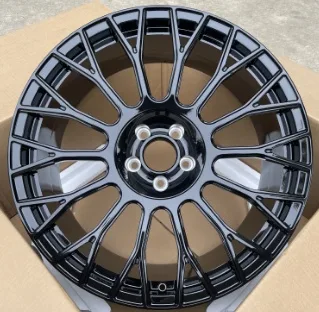

CP6209 is a forged alloy wheel (rim) in 1 finish: Gloss Black (Full Paint). It is an aftermarket design. It comes in 20 inch: 1 size (20x8.5), 1 bolt pattern (5x120), offset ET 35 mm and center bore 72.56 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 20x8.5
Bolt patterns (PCD): 5x120
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Stock | Copy specs |
|---|---|---|---|---|---|---|
| 20x8.5 | 35 | 5x120 | 72.56 | Flat seat | 0 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 20x8.5 is a 20 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. CP6209 comes in ET 35; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x120 is 5 bolts on a 120 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 72.56 mm for CP6209. A bore larger than the hub needs centering rings.
