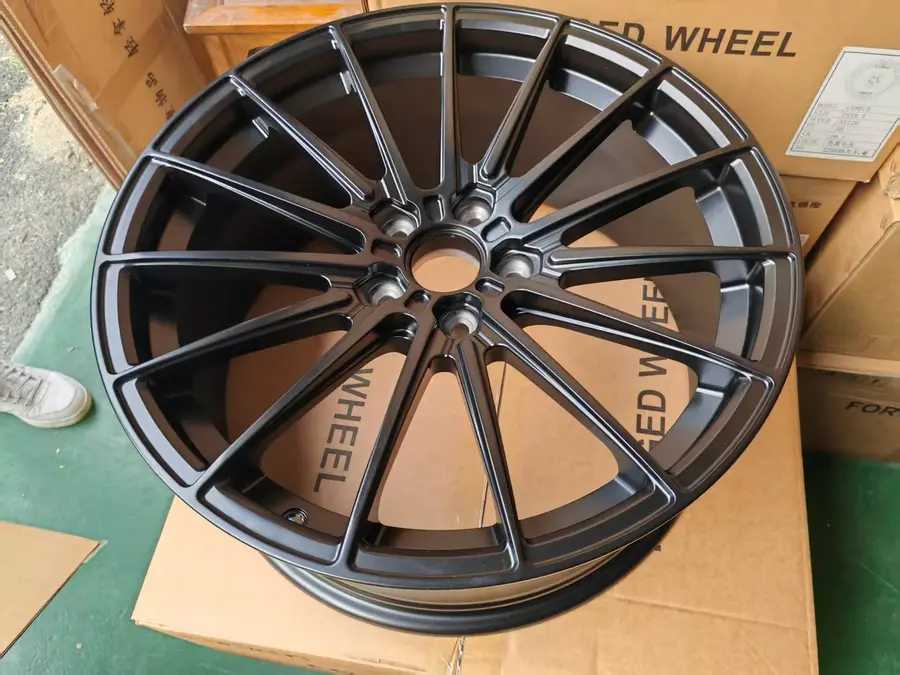

CP6134 Forged Alloy Wheel
CP6134 is a forged alloy wheel (rim) in 1 finish: Matte Black (Full Paint). It is an aftermarket design. It comes in 19 inch: 2 sizes (19x8.5, 19x9.5), 1 bolt pattern (5x112), offset ET 33–40 mm and center bore 66.45 mm. Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 19x8.5, 19x9.5
Bolt patterns (PCD): 5x112
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Stock | Copy specs |
|---|---|---|---|---|---|
| 19x8.5 | 33 | 5x112 | 66.45 | ||
| 19x9.5 | 40 | 5x112 | 66.45 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 19x8.5 is a 19 inch wheel with a 8.5 inch wide rim. The J after a width, as in 8.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. CP6134 comes in ET 33–40; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x112 is 5 bolts on a 112 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 66.45 mm for CP6134. A bore larger than the hub needs centering rings.
