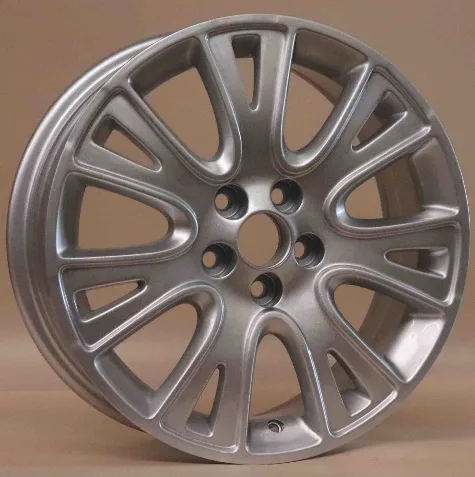

6004 Cast Alloy Wheel
6004 is a cast alloy wheel (rim) in 1 finish: Silver (Full Paint). It is an OEM-fit replacement, made to the size, bolt pattern, offset and center bore of the original wheel. It comes in 16 inch: 1 size (16x6.5), 1 bolt pattern (5x100), offset ET 50 mm and center bore 56.6 mm. Listed for Roewe (550). Not sure what PCD, ET and CB mean? Read how to choose wheels.
Finish
Wheel sizes: 16x6.5
Bolt patterns (PCD): 5x100
| Size (D x J) | Offset (ET) | Bolt pattern (PCD) | Center bore (CB) | Hole type | Fits | Stock | Copy specs |
|---|---|---|---|---|---|---|---|
| 16x6.5 | 50 | 5x100 | 56.6 | Cone seat | Roewe 550 | 41 |
What these numbers mean
- Size (D x J)
- Diameter in inches, then rim width in inches: 16x6.5 is a 16 inch wheel with a 6.5 inch wide rim. The J after a width, as in 6.5J, names the rim flange profile.
- Offset (ET)
- The distance in mm from the wheel's centerline to its mounting face. 6004 comes in ET 50; a lower ET sits the wheel further out.
- Bolt pattern (PCD)
- The number of bolts and the diameter in mm of the circle they sit on: 5x100 is 5 bolts on a 100 mm circle. It must match the vehicle.
- Center bore (CB)
- The central hole that sits over the vehicle's hub: 56.6 mm for 6004. A bore larger than the hub needs centering rings.
